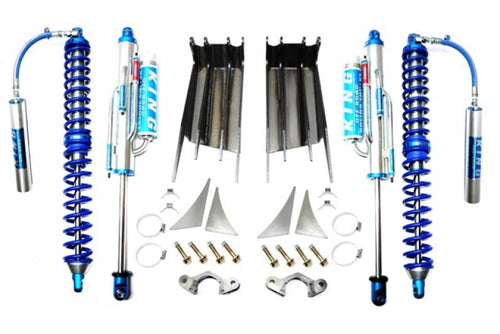

Jeep JK Front D30/D44 Double Throw Down Coilover/Bypass System With 12.0 Inch Travel Shocks 07-18 Wrangler JK EVO Manufacturing

EVO Manufacturing

  • Sale
  • Regular price $3,464.99


Note: Check shipping rates on checkout page

The front EVO Double ThrowDown System is engineered for the guys who like to go fast. This system utilizes a coilover similar to our EVO SPEC Front Bolt on Coilover system and has the same added benefits, as well as an additional bypass shock each corner. With the addition of a bypass shock you have full external adjustability of the damping and zones within the shock stroke that allow the system to be position sensitive. This system gives your suspension up to 14 inches of vertical wheel travel specifically tuned for the Jeep JK.

Features:Coilover/Bypass shocks (Comes complete with EVO SPEC King Shocks)All bracketry made from laser cut 3/16 inch steel and CNC bent for optimum precisionAdjustable ride height without the need for changing partsEngineered and tested to pair with the EVO Rear Double ThrowDownCompatible with 2007 and up Jeep Wrangler JK (2 and 4-door models)This Complete system uses: 2.0 Diameter EVO Spec Remote Reservoir Coilover by King Shocks 2.5 inch Diameter EVO Spec Remote Reservoir by King Shocks 3-Tube BypassAll shocks purchased with our kit come with EVO Spec Proprietary Spring Rates and ValvingDifferential: Dana 30 and Dana 44Make: JeepModel: Wrangler JK/JKUDoors: 2 Door and 4 DoorTravel: 12.0 InchMaterial: SteelLocation: FrontSeries: Double ThrowDownSold As: EachNote: High Clearance Fenders RecommendedNote: Front Aftermarket CV Driveline is required for proper installation and is not included with kitNote: Wheel backspacing adjustments may be required. Due to so many variations and combinations of ACTUAL tire sizes, wheel widths, tire inflation presures etc.
